Sharpen Your Image With Stabilized Lenses and Digital Cameras

As recently as 18 months ago, a built-in image stabilizer was a rarity in digital cameras. It was available only in a couple of Panasonic models and one Konica Minolta DiMAGE camera. Today, an increasing number of digicams -- from four manufacturers -- employ some form of camera shake compensating device. And there's even a digital SLR with a built-in Anti-Shake mechanism, the Maxxum 7D. We expect this trend to continue with other manufacturers jumping on the bandwagon. "Sounds great if you're into high-tech gizmos," you may be thinking, "but is this feature really necessary?"

That's exactly what I wondered before testing the first camera with an image stabilizer. Since then, I have become a convert. Particularly with telephoto lenses, the system can be incredibly valuable. That's because any long lens magnifies the least camera shake, increasing the risk of blurry images. Sure, you could use a tripod instead but most digicam owners would rather shoot hand-held. And even dedicated photographers find situations where a tripod is prohibited (as in cathedrals) or impractical: while cycling, backpacking or shooting from watercraft, for example.

Camera Shake Compensating Devices
An image stabilizing system is useful because none of us can hold a camera perfectly still. Our natural body tremors create some shake -- upward and downward, and side to side -- and the effect becomes increasingly visible as we shoot at longer shutter speeds. The blurring from camera shake may not be noticeable in a small 4x6" snap shot. Make an 8.5x11" glossy however, and the problem may be obvious; in an 11x15" or larger print, even the slightest evidence of camera shake will be objectionable.

When shooting with a conventional camera/lens, you can use flash or a high ISO setting for fast shutter speeds. Both options work can work well in "freezing" the effect of any camera movement. But there are drawbacks too. Flash is useful only for nearby subjects and very high ISO settings produce visible digital noise, colored specks caused by electronic interference.

Canon has offered a solution for owners of EOS SLR cameras since 1998: a series of IS lenses with a built-in Image Stabilizer. Nikon subsequently introduced some VR lenses with a Vibration Reduction mechanism and Sigma has released an 80-400mm OS zoom with an optical stabilizer. After extensive testing, I know that these systems are very effective, great for shooting hand-held when maximum mobility is required. Problem is, the stabilized lenses range from pricey to ridiculously expensive and are available only for SLR camera owners.

In addition to the more typical applications for a stabilizing system, this amenity is useful whenever shooting from an unstable platform, such as a boat, a floating dock, an airplane, helicopter, etc. I took these shots from a lightweight canoe, bobbing on the waves created by a passing JetSki that created camera movement at various angles. The Panasonic Mega OIS system was not able to produce a critically sharp image at the 1 / 30 sec. shutter speed required in low evening light, but its effect is obvious in these images. (Panasonic Lumix DMC-FX7; 105mm focal length; ISO 400.) Photos © 2005 Peter K. Burian.

The first digital cameras with built-in stabilizer were made by Olympus and Canon a few years ago, but the concept did not catch on until late 2002. That's when Panasonic released the more affordable Lumix DMC-FZ1 with 12x Leica zoom and Mega OIS (optical image stabilizer). The camera spawned additional Lumix models with Mega OIS. It also motivated Canon, Nikon and Konica Minolta to make some cameras with their own shake compensating mechanism. By the time you read this, even more brands and models may be available.

How Does Stabilization Work?
In order to appreciate the value of a camera shake compensation system, it's worth understanding a couple of principles. When a conventional camera/lens is shaking at the moment of exposure, the image projected to the digital sensor is also shaking. Hence the photo will be blurred. To minimize the risk when hand-holding a camera, use a rigid tripod or a fast shutter speed: "one over the reciprocal of the focal length", according to a rule of thumb. That means a shutter speed of at least 1/400 sec. at 400mm, 1/250 sec. at 250mm and 1/30 sec. at a 28mm zoom setting. (All focal lengths are stated in 35mm equivalents.)

If you want to shoot at longer shutter speeds without a tripod or other firm support, it's worth considering a stabilized lens or digital camera. Most of these incorporate an optical stabilizer that works like this. When sensors detect camera shake, a microcomputer shifts a group of lens elements in the appropriate direction to counteract the effect. The incoming light rays are refracted (bent) and the projected image is returned to the center of the frame. That increases the odds of sharp photos, without noticeable blurring from camera movement.

Konica Minolta employs an entirely different approach. Some of their DiMAGE cameras -- and the Maxxum 7D digital SLR -- incorporate an Anti-Shake system that shifts the entire sensor module to compensate for camera movement. The Anti-Shake system in the Maxxum 7D offers great versatility: It's effective with every Maxxum lens ever made with two exceptions: the 16mm Fish Eye and the 3x -- 1x Macro Zoom. The "CCD-shift" system also works well with at least some independent brand Maxxum mount lenses; a full list of those would require testing numerous other lenses.

Konica Minolta employs an Anti-Shake system in the Maxxum 7D SLR and in some of their DiMAGE digital cameras with built-in zoom lenses. The entire CCD sensor module is shifted to compensate for camera shake in any direction. Courtesy of Konica Minolta.

Stabilizer System Evaluation
Over the past eighteen months I have worked with many of the digital cameras that include a shake compensating device. Frankly they're just as effective -- in the most important respect -- as the SLR system lenses with IS, VR or OS stabilizers. You can find my evaluations of several such lenses at www.shutterbug.com; use the Search function to look for test reports of Canon, Nikon and Sigma telephotos and zooms.

Some of lenses with built-in stabilizer provide one significant advantage over cameras with comparable systems. The recent Canon, Nikon and Sigma telephotos include a mode for panning at slow shutter speeds in action photography. When that option is selected, the system compensates only for vertical (up/down) shake; it does not try to compensate for the intentional horizontal movement. Pan at just the right speed and the subject should be fairly sharply rendered, while the background will be streaked -- but smoothly -- for a convincing effect of motion. By contrast, only one digital camera (DiMAGE Z3) with built-in stabilizer is optimized for panning. Sure, you can use any of the cameras for the same purpose, but you won't always be happy with the results.

Note: No optical or mechanical stabilizer can stop the motion of a moving subject. Hence, a fast shutter speed is required to "freeze" a high jumper in mid-air or an eagle or motorcycle speeding toward you.

A stabilizing system can be useful in bright light too, when shooting at small apertures for extensive depth of field (range of acceptable sharpness) in landscape, nature and travel photography. Especially when using a polarizer (a filter that reduces light transmission), shutter speeds can be quite long at the low ISO settings that produce the best image quality. A rigid tripod is the best solution to camera shake but a built-in stabilizer can sometimes be just as effective. (Konica Minolta Maxxum 7D; 24-85mm zoom at 40mm, 60mm equivalent; 1 / 15 sec. exposure at f/14, with and without the Anti-Shake system; ISO 100.) Photos © 2005 Peter K. Burian.

In my experience, the various types of cameras and lenses with stabilizer are roughly equal in their effectiveness. On average, they provide a two to three shutter speed step advantage over conventional equipment. That's certainly meaningful because it allows us to shoot at ISO 100 or 200 instead of ISO 800 in low light, for superior image quality without worrying about the longer shutter speeds.

Aside from the benefits in low light shooting, any type of stabilizer offers an advantage in bright to moderately bright light. It allows us to shoot at small apertures at low ISO settings for extensive depth of field, without worrying about the longer shutter speeds when hand-holding the camera. The expanded zone of acceptable sharpness is often valuable in landscape, travel and "macro" nature photography. Finally, it's great to be able shoot at f/8 or f/11 because most zoom lenses produce the best optical performance when used at those moderate size apertures.

The Bottom Line
The exact benefit provided by any camera or lens with a shake compensating device varies, based on several factors. For starters, some people are naturally steadier than others. When testing the Lumix DMC-FZ20, my colleague Jack Neubart made razor sharp images at the 432mm focal length at a 1/50 sec. shutter speed. That's better than the 1/90 sec. shutter speed that I usually needed for critical sharpness, unless I braced my elbows on some firm support. Naturally, we both made some fairly sharp images at a long, 1/30 sec. shutter speed as well, but not consistently.

Note too that heavy cameras/lenses (with greater mass) require less stabilization than their very light/compact counterparts. Hence, we can generally use them at surprisingly long shutter speed without serious blur from camera shake. Finally, all stabilizers produce the most impressive benefits at very long focal lengths. You might get a three shutter speed step advantage at 200mm but only a two step advantage at the 28mm end of a zoom lens, for example. Of course, as they say, "your own mileage may vary."

Regardless of the exact technology, any camera shake compensating system pays dividends. It allows snap shooters to make sharper pics and offers serious photographers greater leeway in selecting the most appropriate aperture/shutter speed. These problem-solving aspects are definitely worthwhile, helping to increase our success ratio of technically excellent images.

A stabilizing device can compensate for camera shake but it cannot "freeze" the movement of a performer, an active animal, a competing athlete or flowing water. When recording such subjects at long shutter speeds, take advantage of the stabilizing system to produce images with interesting motion effects while maintaining sharpness in surrounding areas. (Konica Minolta Maxxum 7D with 24-85mm zoom at 50mm; 1 / 10 sec. exposure; ISO 400.) Photo © 2005 Peter K. Burian.

Digital Cameras With Integral Stabilizer
In addition to the many lenses with a built-in stabilizer or vibration reduction system, an increasing number of digital cameras incorporate a shake-compensating device. The following were available at the time of writing but we expect additional models to be announced. (Lens focal lengths are shown in 35mm format equivalent. Street prices are provided below but these are subject to change.)

Canon makes many IS lenses -- with optical image stabilizer that shifts lens elements -- for their EOS system. Similar technology is used in the PowerShot S1 IS camera with built-in Canon 38-380mm (equivalent) zoom lens. Photo Courtesy of Canon.

Canon: Like the stabilizer system available in some EF lenses, the device used in two PowerShot cameras shifts optical elements to compensate for camera shake.
PowerShot S1 IS: 3 megapixel; 38-380mm f/2.8-3.1 lens; $349
Canon PowerShot S2 IS: 5Mp; 36-432mm lens; $499.

Konica Minolta: All of the following cameras use a unique Anti-Shake system that shifts the entire CCD sensor module, in any direction, to compensate for camera movement.
DiMAGE Z5: 35-420mm f/2.8-4.5 APO GT lens; $449.

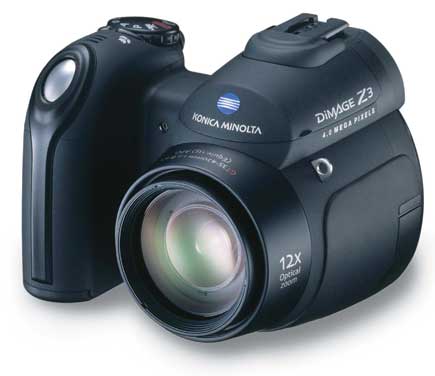

DiMAGE Z3: 35-420mm f/2.8-4.5 APO GT lens; $389.
DiMAGE A2 and A200: 8Mp; 28-200mm f/2.8-3.5 lens; $749 and $649, respectively
Maxxum 7D: 6Mp Digital SLR; CCD shift anti-shake device works with nearly all Maxxum lenses; $1499

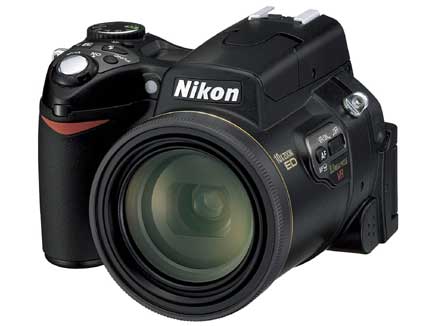

Nikon: This company's VR lenses include a stabilizer that shifts elements to miminze blur from camera shake; similar technology is used in their CoolPix 8800 camera.
CoolPix 8800: 8Mp; built-in Nikkor 35-350mm lens; $999.

The complex Mega OIS (optical image stabilizer) system used in some Panasonic Lumix cameras shifts lens elements to compensate for camera shake. Photo Courtesy of Panasonic.

Panasonic: The following cameras use the Mega OIS optical stabilizer with two options. Mode 1 provides full time shake compensation that also helps stabilize the viewfinder image. Mode 2 provides greater effectiveness but is activated only when the camera's shutter release button is pressed; the viewfinder image is not stabilized.
Lumix FZ-20: 5Mp; Leica 36-432mm f/2.8 lens; $599.
Lumix FZ-15: 4Mp; Leica 35mm - 420mm f/2.8 lens; $499.
Lumix FZ-5: 5Mp; Leica 36-432mm f/2.8-3.3 lens; $499.
Lumix FZ-4: 4Mp; Leica 35-420mm f/2.8-3.3 lens; $449.
Lumix FX7: 5Mp; Leica 35-105mm lens; $399
Lumix LZ-2: 5Mp; Panasonic 37-222mm f/2.8-4.5 lens; $299.
Lumix LZ1: 4Mp; Panasonic 37-222mm f/2.8-4.5; $249.
Lumix LS1: 4Mp; Panasonic 38-105mm f/2.8-5; $229.

Sony: During the PMA 2005 trade show, Sony announced their first camera employing an optical image stabilizer. The H1 will be available in June or July 2005.
Cyber-Shot DSC-H1: 5Mp; Sony 36-432mm f/2.8-3.8 lens; $499.
