To show how the tonal curve can affect the image take a look at #7. This is the default setting used by the preset I selected. It’s a subtle tone that resembles a platinum print, and one that I find is a good starting point for this type of look.

#7 Here’s how the wolf looks with the default preset. Not bad, and certainly an improvement over a straight black and white, but not quite what I had in mind.

I want to strengthen the blue tint, so I drag the curve points to the locations I think look best (once again, all updates are done as you move the curve points, so it’s easy to experiment to get just the value you want). By mapping a more aggressive curve, the blue tone is intensified and gives more detail to the darker areas of fur on the wolf (#8). To make adjustments to a curve, click on the handle and drag it. To add a new point, just click where you want it and then drag to the location you want. As an alternative, you can type numbers directly into the percentage boxes, but I find that it’s much easier, and more visual, to deal with the curve itself. You can see below the curve the step wedge that shows what part of the tonal range is affected by the curve points.

#8 The end result of my adjustments has given me a platinum-toned print that I’m very happy with. The improvement over the default preset is very visible, especially in the darker areas of fur and shadow.

Tritone And Quadtone Images
The only real difference between duo-, tri-, and quadtone images is the number of colors being used. It becomes more important with a tritone or quadtone to apply those colors carefully to have a good range of tones throughout your image. In the next example, I’ve created a tritone image using Black and two similar shades from the PANTONE library (#9). If you look at the curves, you’ll see that each color is impacting a different area of the image, with blacks mostly in the shadows, PANTONE 409 CVC in the mid tones, and PANTONE 407 CVC in the highlights (#10).

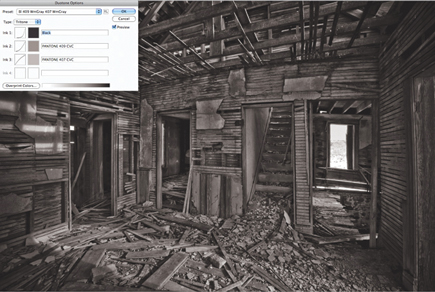

#9 When making a duo-, tri-, or quadtone, it’s important to try and keep any overlap in colors to a minimum. This will give you a wider tonal range in your image. Here, the black is primarily affecting the shadows, while PANTONE 409 is controlling the mid tones and PANTONE 407 the highlights.

#10 The curves for each color make it easier to see which areas of the image are being affected by each color value in this tritone. By clicking on a point in the curve, I can drag the curve up or down to change the behavior. I can also add new points to the curve for even finer control.

Your goal is to keep any overlap in color to a minimum in order to have the widest tonal range possible. The best way to learn how these colors interact is to start out with the presets and then make adjustments to either a color or the curve for a color and see what the effect is on your image.

Split-Tones In Lightroom
If you’re a Lightroom or Adobe Camera Raw user, you can accomplish something very similar by using the Split Toning controls in each program (#11). Note that I say similar, as it’s impossible to achieve the exact same effect since you’re working with Hue and Saturation for two colors, rather than tonal curves for a specific color.

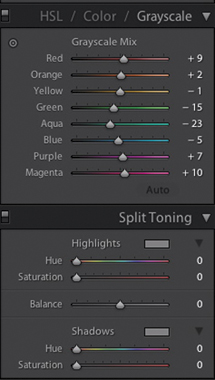

#11 Adobe Camera Raw and Lightroom have a Split Toning control which works by manipulating the Hue and Saturation for two colors. By adjusting the Balance, you can control how strong each color is used in the final image. This method doesn’t give you as much control over the toning, nor as much tonal range as duotone adjustments though, because you can’t set the curve or use other color libraries.

#12 Here’s a completed image using the Split Toning control in Lightroom. While it’s a useful tool, I find that using the duotone control in Photoshop gives me better results.

An example of using Split Toning is shown in #12. I’ve adjusted the color balances for each color in the HSL panel to give me the optimal black and white image possible with this shot. In the Split Toning panel, I’ve selected Hue and Saturation values for both the Shadows and Highlights, and by using the Balance control I’ve weighted the color toward the shadow side of the histogram.
