Exploiting Color For B&W Fidelity; Try Your Hand At Duo-, Tri-, And Quadtones

sorcadmin's picture

It seems easy to create a black and white from a digital image (#1). At its most basic level all that is required is selecting “Convert to Grayscale,” which is found in almost every image-editing program on the market. But, this simple transformation leaves much to be desired. In reality, you’re just discarding all of the color information and are usually left with a flat gray image that doesn’t do much for you. There are better methods, and, with some basic guidelines, it’s not very complicated. Taking it a step further, you can also create toned images using two, three, or four different color values. This type of print is also known as a duotone (two color), tritone (three color), or quadtone (four color) image.

#1 A properly done duotone image can greatly improve the tonal range and detail in your image, especially over a standard grayscale conversion.

What Is A Multi-Tone Print?
A multi-tone print is the result of printing a grayscale image using two, three, or four (or more) ink colors. The result is a richer tonal range than would be possible when using only one color or just black ink. By selecting ink colors, you can create a toned image that mimics the traditional darkroom processing techniques like platinum, selenium toning, and other alternative processes.

True, it’s possible to achieve a similar look by using the Hue and Saturation control, but this tool doesn’t give you as much control over how the color is applied, and you’re still limiting yourself to printing a color image with emphasis on two tones, rather than using the colors as a monochome ink set with its much greater tonal range.

Creating A Duotone Image
Let’s start off with the simplest of toned images, the duotone. If you’re using Photoshop, with your image open, the first step is to convert to grayscale by selecting Image>Mode>Grayscale. Now, select Image>Mode>Duotone (#2).

#2 After converting your image to grayscale, select the Image>Mode>Duotone menu item. The duotone dialog box is deceptively simple, but behind the color and curve boxes lies a great amount of control. By default, you’ll open as a Monotone image. Select Duotone from the drop-down list to enable the other color and curve boxes.

By default, you’ll see that you have a Monotone image since you’re starting with a grayscale. Select Duotone from the pop-up menu to enable a second ink selection. You can click on the color square to select the tones you want to use, either the standard color options (#3) or, by clicking on Color Libraries, you can select from a number of different palettes such as the PANTONE color library (#4).

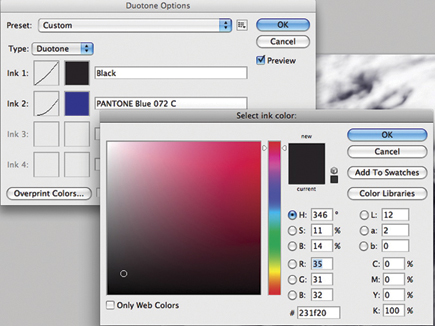

#3 The standard color picker is displayed when clicking on the color box. If you want to use color libraries other than the system library, select the Color Libraries button.

#4 There are a number of color libraries included with Photoshop. I typically use the PANTONE library and find that it’s a good match for most inkjet printers. You can select colors by their PANTONE name or by scrolling through a list of color swatches.

Perhaps the easiest way to understand how tonal options work is to select one of the many presets that are included with Photoshop. In the example shown in #5, I’ve selected the blue 072 bl 4 preset. Obviously not an intuitive name, but as you scroll through the list and try different options, Photoshop will update your image prior to making a commitment to those tones.

#5 Photoshop includes a large selection of presets as well. This particular preset is one that I’ve found to be a good starting point for platinum-toned prints. The naming is a bit confusing at first, but the presets with a number 1 through 4 are different strengths of the same color values.

The real power in this dialog box is the Curves control for each color choice. This is where you set how the color is applied to your image. The Duotone Curve works very much like the normal Curves control in Photoshop. As you can see in #6, the Black curve is pretty linear while the PANTONE Blue 072 CVC curve affects the image much less, and mostly in the mid tones.

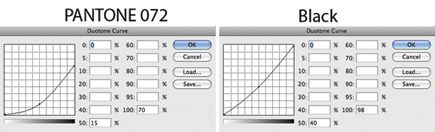

#6 Here’s the adjustment I made to the PANTONE 072 color curve to increase the contrast in the darker areas a bit more. I can now save this as a new preset if I like, making it easier to access favorite combinations in the future.
